Product Details
+
When you’re travelling off the beaten track and need to be able to rely on your solar panels, this 150w heavy duty solar mat is your absolute best choice. It is made with certified A-grade monocrystalline solar cells with solid copper cell backing, extra-thick 1680D canvas and our exclusive Crocskin cell armour. Now compatible with all types of lithium batteries including LiFePO4, Li4Ti5O12 and Li-ion, as well as AGM, Gel, Calcium and Wet cell batteries.
Specifications
Cell type | A-grade monocrystalline silicon |
---|---|
Cell efficiency | 20.5% |
Cell backing | Solid copper |
Cell coating | Crocskin cell armour |
Wattage | 150W |
Working max. voltage | 18.00V |
Working max. current | 8.33A |
Open circuit | 21.24V |
Short circuit | 9.17A |
Dimensions (folded) | 710mm x 530mm x 30mm |
Dimensions (unfolded) | 1830mm x 700mm |
Weight | 7.5kg (excl. controller & cables) |
Operating temperature | -30°C to 70°C |
Certifications | CE, RoHS, C-Tick |

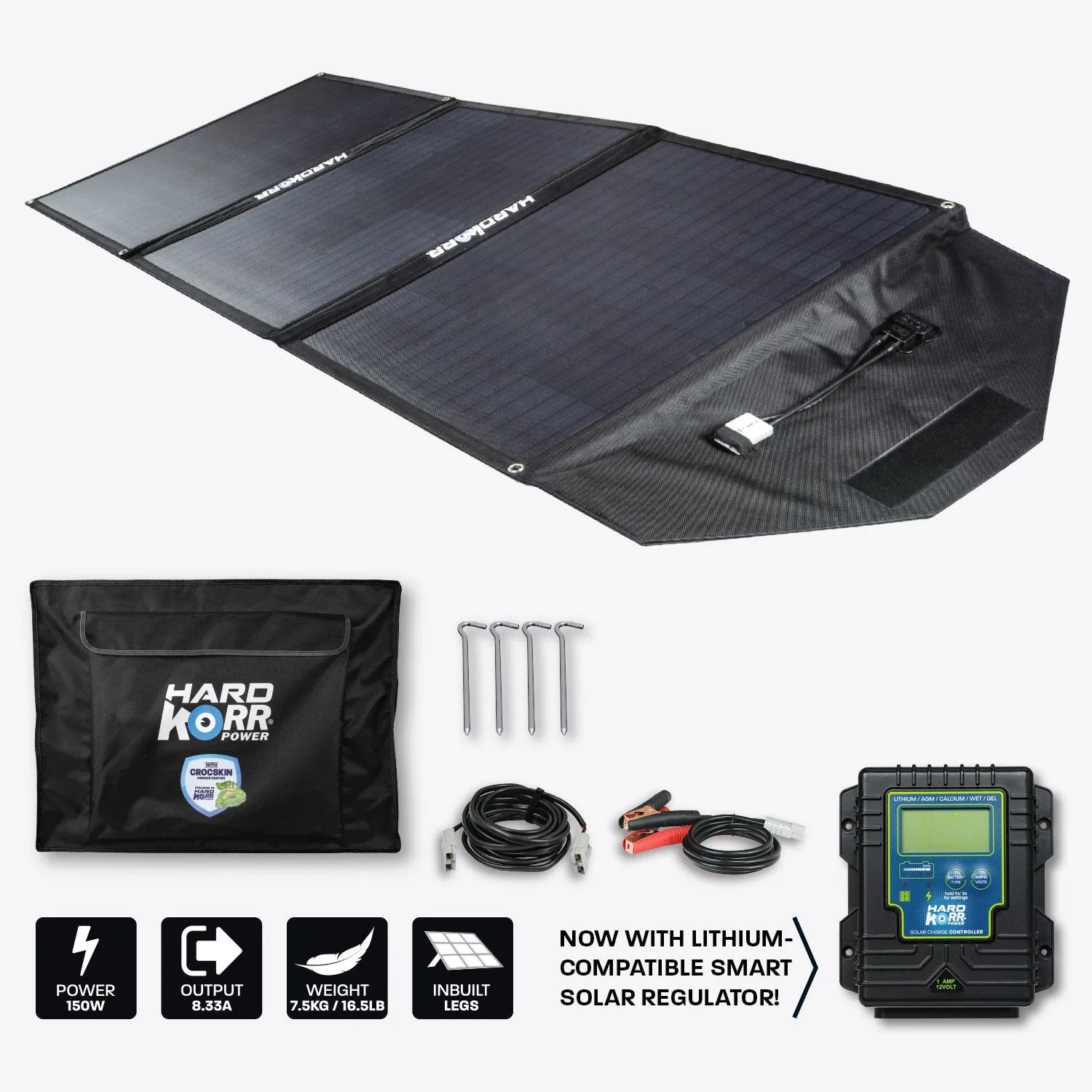

Pack Contents
1x | 150w solar panel |
---|---|
1x | 15A 6-stage PWM smart solar regulator |
1x | 5m lead with Anderson plugs |
1x | 1.5m Anderson-style plug to battery clamp cable |
1x | Tie down pegs |
1x | Protective carry bag |
